Name: BioPoly™ Vinyl RFID Inlay Sheet EM4200 - RFID Card
SKU: AZC-EM42-BPVIS
Availability: InStock

Description

Features

Specifications

Features

Frequency Band

LF 125 kHz

Chip Type

EM4200

International Standard

ISO/IEC 11784, ISO/IEC 11785

Specifications

Product DATASHEET

EM4200 DATASHEET

Physical Specifications

Material: BioPoly™ Vinyl
Size: 472×290 mm, 460×305 mm available, or custom sizes upon request
Thickness: 0.5 mm, 0.55 mm available, or custom thicknesses upon request
Antenna Size: ⌀42 mm
472×290 mm | 460×305 mm
Layout : 3×8 | 5×5

Environmental Spec

Storage Environment: 18°C ~ 28°C, 40% ~ 60% RH
Precaution: Inlays with “×” marks are bad ones, do not use
Care Tips:
1. Avoid excessive bending.
2. Keep away from water and collision.
3. Store in cool and dry place.
Cleaning Tips:
1. Use a soft, dry cloth.
2. Avoid harsh chemicals or abrasive cleaners.
3. Remove stains immediately.

Chip Characteristics

Chip Manufacturer: EM microelectronic
Chip Type: EM4200
ROM: 128 bits (64 and 96 bits option available)
R/W Availability: Read only

Technical Parameters

Operating Frequency: 125 kHz
Support Protocols: ISO/IEC 11784, ISO/IEC 11785
Resonant Capacitor: 0/75/250 pF mask option
Several Options of Data Rate and Data Encoding: Manchester 32 and 64 RF clocks per bit
Biphase 32 and 64 RF clocks per bit
PSK 16 RF clocks per bit (subcarrier RF/2)
FSK2 50 RF clocks per bit

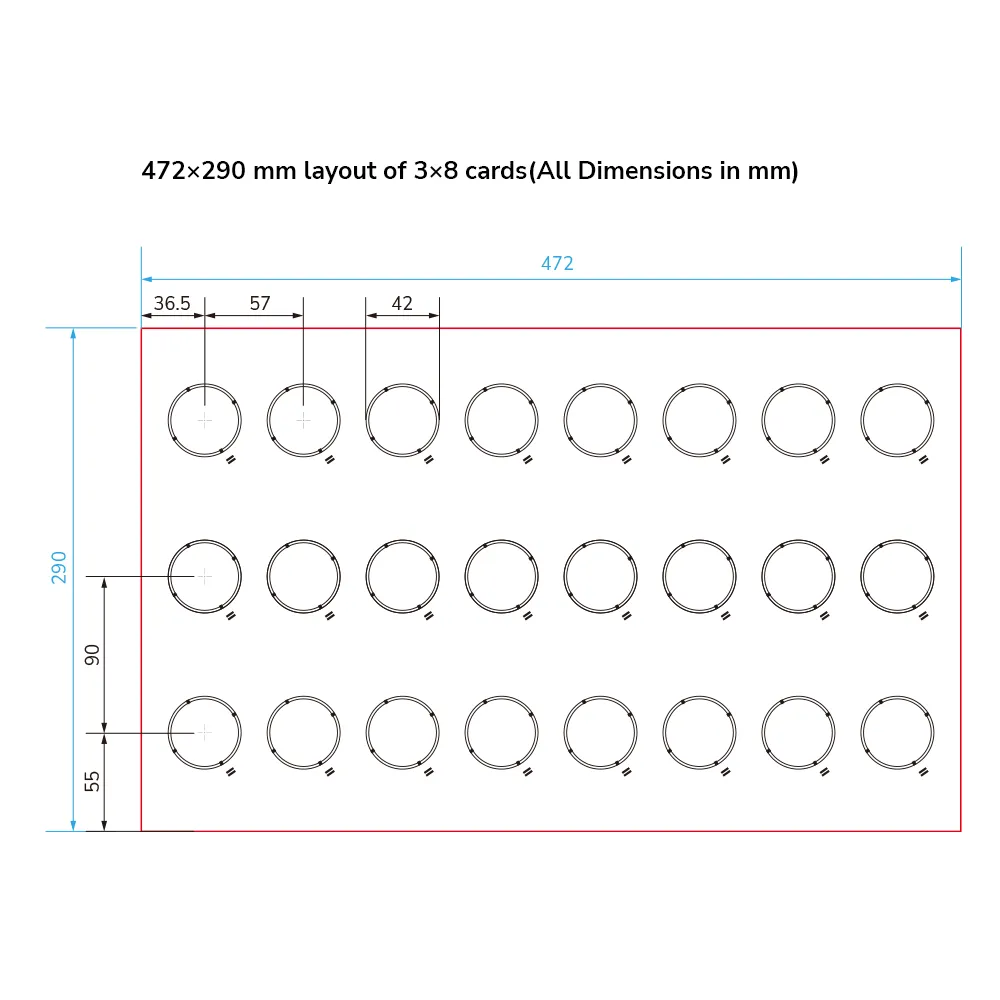

LF RFID Inlay Sheet 3 8mm layout for secure RFID solutions

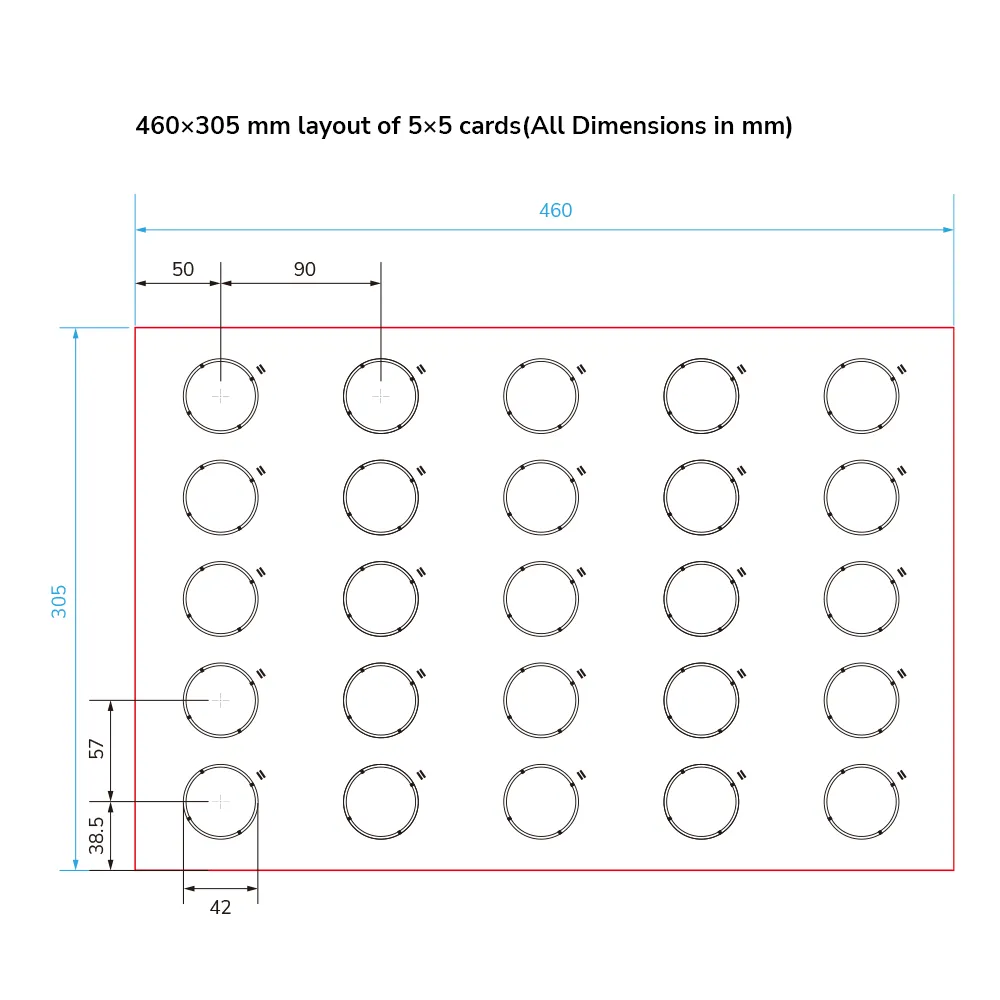

LF RFID Inlay Sheet 5 5mm layout for low-frequency applications
