Impinj Monza R6P BioPoly Vinyl RFID Inlay 3 8mm layout with reliable read range
Impinj Monza R6P BioPoly Vinyl RFID Inlay 3 8mm layout with reliable read range
Impinj Monza R6P BioPoly Vinyl RFID Inlay 5 5mm layout with sustainable RFID design
Impinj Monza R6P BioPoly Vinyl RFID Inlay 3 8mm layout with reliable read range
Impinj Monza R6P BioPoly Vinyl RFID Inlay 5 5mm layout with sustainable RFID design

BioPoly™ Vinyl RFID Inlay Sheet Impinj® Monza® R6-P

Price range: $28.20 through $1,938.46

The Impinj® Monza® R6-P BioPoly™ Vinyl RFID Inlay features the high-performance Monza® R6-P chip, known for its exceptional read range, reliability, and accuracy. This chip optimizes inventory and asset tracking, ensuring fast and efficient data capture in various applications. While offering cutting-edge RFID technology, the inlay also utilizes eco-friendly BioPoly™ Vinyl, a biodegradable PVC made with renewable materials that degrades within three years, reducing environmental impact without compromising performance. The combination of the Monza® R6-P chip and sustainable BioPoly™ Vinyl makes this inlay a powerful, environmentally responsible solution for modern RFID needs.

SKU: AZC-R6P-BPVIS CategoryTag

Description

Features
Specifications
Search
Contact Us

Features

Frequency Band

UHF 860~960 MHz

Chip Type

Impinj® Monza® R6-P

International Standard

ISO/IEC 18000-63, EPCglobal Gen2v2

User Memory

32/64 bits

TID Memory

96 bits

EPC Memory

128/96 bits

Specifications

Product DATASHEET
Impinj® Monza® R6-P DATASHEET

Physical Specifications

Material: BioPoly™ Vinyl
Size: 472×290 mm, 460×305 mm available, or custom sizes upon request
Thickness: 0.5 mm, 0.55 mm available, or custom thicknesses upon request
Antenna Size: 78×78 mm
472×290 mm | 460×305 mm
Layout : 3×8 | 5×5

Environmental Spec

Storage Environment: 18°C ~ 28°C, 40% ~ 60% RH
Precaution: Inlays with “×” marks are bad ones, do not use
Care Tips:
1. Avoid excessive bending.
2. Keep away from water and collision.
3. Store in cool and dry place.
Cleaning Tips:
1. Use a soft, dry cloth.
2. Avoid harsh chemicals or abrasive cleaners.
3. Remove stains immediately.

Chip Characteristics

Chip Manufacturer: Impinj®
Chip Type: Monza® R6-P
User Memory: 32/64 bits
TID Memory: 96 bits
EPC Memory: 128/96 bits
Write Endurance: 100,000 cycles
Data Retention: 50 years
ECC-Based Originality Signature: Access/Kill short-range mode, 32 bits Access/Kill Password
Auto Tune™ Automatic RF Tuning: Standard
Integra™ Memory Diagnostics: Standard
TagFocus™ Read Redundancy Prevention: Support
FastID™ High-Speed Reading: Support

Technical Parameters

Operating Frequency: 860~960 MHz
Support Protocols: ISO/IEC 18000-63, EPCglobal Gen2v2
Data Transfer: 1.6ms for 32 bits

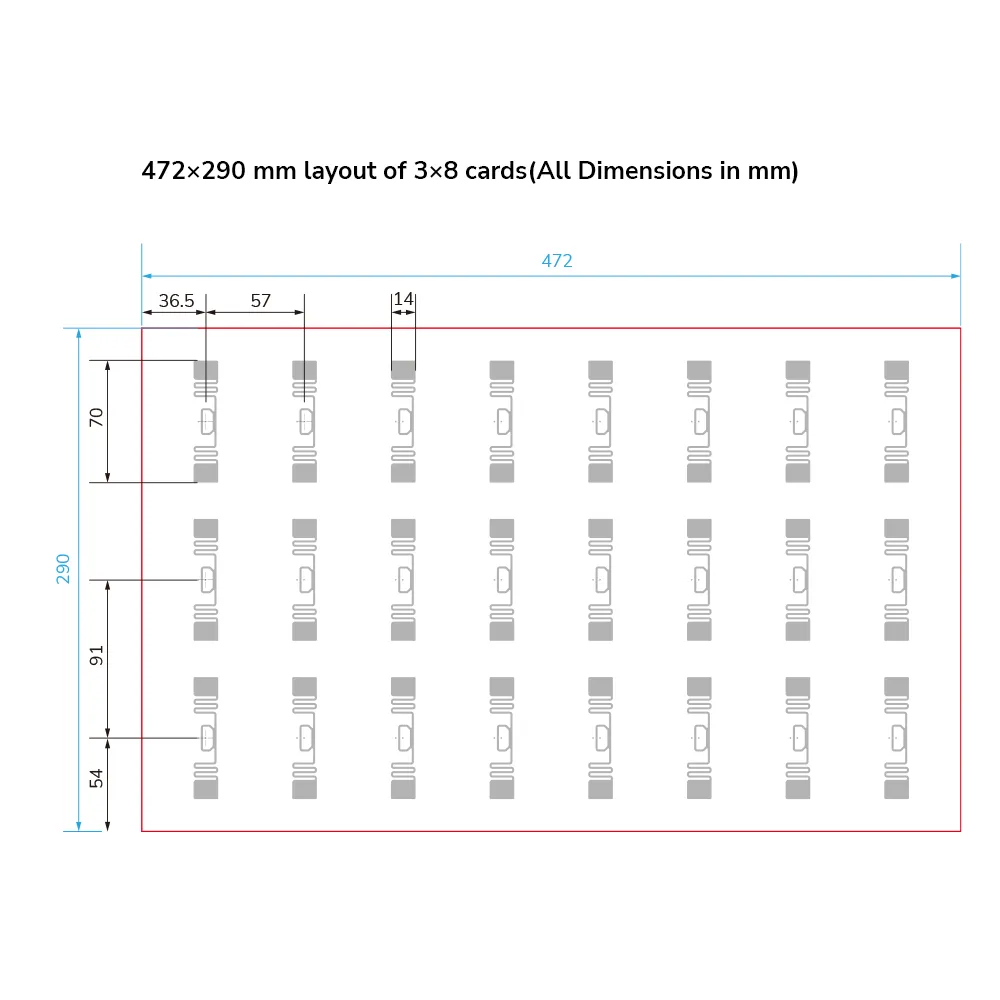

UHF RFID Inlay Sheet 3 8mm layout for reliable performance

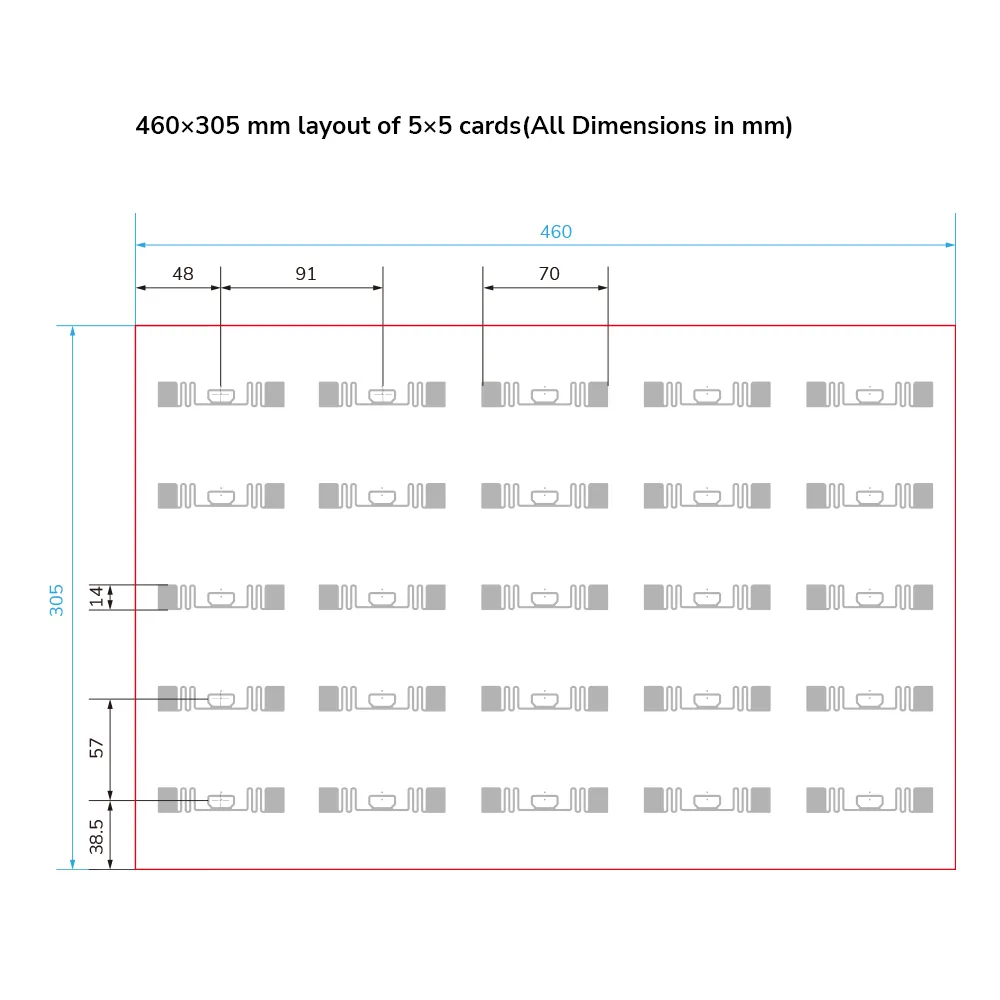

UHF RFID Inlay Sheet 5 5mm layout for optimized RFID design
