Choosing the right 125 kHz RFID chip depends on your application requirements, budget, and system compatibility. While EM4200, T5577, TK4100, and ATA5577 are all popular low-frequency RFID chips, they differ in key aspects such as read/write capability, memory capacity, security level, and cost.
As a professional RFID card manufacturer, RFIDCard.com supplies custom 125 kHz RFID cards using these widely used chips for access control, identification, hospitality, and industrial applications. This guide compares EM4200 vs T5577 vs TK4100 vs ATA5577 to help you select the best RFID chip for your project.
Quick Comparison: EM4200 vs T5577 vs TK4100 vs ATA5577
Before selecting a 125 kHz RFID card, it is important to understand the key differences between available chip options. The main factors to consider include whether the chip is read-only or writable, memory capacity, protocol compatibility, security level, and overall cost.
The following table provides a quick comparison of the four most commonly used 125 kHz RFID chips:
| Feature | EM4200 | TK4100 | T5577 | ATA5577 |
| Frequency | 125 kHz | 125 kHz | 125 kHz | 125 kHz |
| Manufacturer | EM Micro | Compatible manufacturers | Atmel | Microchip |
| Memory | 64 bits | 64 bits | 330 bits | 330 bits |
| Data Type | Read-only | Read-only | Read/write | Read/write |
| Programmable | No | No | Yes | Yes |
| Protocol Compatibility | EM4100 compatible | EM4100 compatible | Multiple LF protocols | T5577 compatible |
| Security Level | Low | Low | Medium | Medium |
| Cost Level | Medium | Low | Medium | Medium |
| Best For | Stable ID cards | Budget RFID cards | Flexible applications | Advanced LF projects |
From the comparison above, EM4200 and TK4100 are suitable for simple identification applications that require fixed ID numbers, while T5577 and ATA5577 are better choices when reprogramming flexibility is needed.
Writable vs Read-only: Which 125 kHz RFID Chip Should You Choose?
The biggest difference between these four 125 kHz RFID chips is whether the chip can be rewritten after manufacturing. Read-only chips are designed for fixed identification, while writable chips provide more flexibility by allowing data to be programmed and updated.
Choosing between read-only and writable RFID chips depends mainly on your application requirements, system compatibility, and whether you need future data changes.
Read-only RFID Chips: EM4200 and TK4100
Read-only RFID chips store a fixed identification number that cannot be modified after production. They are widely used in applications where a stable and simple ID solution is required, such as access control, employee identification, and basic RFID card systems.
EM4200 RFID Chip
EM4200 is a popular 125 kHz low-frequency RFID chip developed by EM Micro. It is an upgraded version of the EM4100 series and is designed for reliable identification applications.
Key features of EM4200:
- 64-bit memory
- Stable performance
- Low power consumption
- EM4100 compatibility
- Read-only operation
Common applications:
- Access control cards
- Employee ID cards
- Membership cards
- Basic identification systems
EM4200 RFID cards are a suitable choice for projects that prioritize reliability and compatibility over advanced programmability.
TK4100 RFID Chip
TK4100 is a cost-effective 125 kHz RFID chip commonly used as an alternative to EM4100-compatible solutions. It provides basic identification functionality at a lower cost, making it popular for large-volume RFID card projects.
Key features of TK4100:
- 64-bit memory
- Read-only operation
- Compatible with EM4100 systems
- Low-cost solution for bulk applications
Common applications:
- Basic access control cards
- Employee identification cards
- High-volume RFID card deployments
EM4200 vs TK4100 Comparison
| Feature | EM4200 | TK4100 |
| Writable | No | No |
| Memory | 64 bits | 64 bits |
| Cost | Higher | Lower |
| Best for | Stable projects | Budget projects |
Writable RFID Chips: T5577 and ATA5577
Unlike EM4200 and TK4100, T5577 and ATA5577 allow users to rewrite chip data and configure different settings. This makes them more flexible for applications that require programmable RFID cards or compatibility with different low-frequency RFID systems.
T5577 RFID Chip
T5577 is one of the most widely used writable 125 kHz RFID chips. It provides programmable memory and supports multiple low-frequency RFID applications.
Key features of T5577:
- 330-bit memory
- Reprogrammable data storage
- Supports multiple LF RFID configurations
- Flexible deployment options
Common applications:
- RFID testing cards
- Access control projects
- Programmable RFID cards
- Flexible identification systems
T5577 RFID cards are often selected when customers need more control over card programming and system configuration.
ATA5577 RFID Chip
ATA5577 is a programmable 125 kHz RFID chip based on T5577 technology. It offers similar functionality with improved chip availability and compatibility for various RFID projects.
Key features of ATA5577:
- 330-bit memory
- Read/write capability
- T5577-compatible configuration
- Improved availability for long-term supply
Common applications:
- Advanced access control systems
- Programmable RFID cards
- Custom RFID identification solutions
Security Comparison: Are 125 kHz RFID Chips Secure?
125 kHz RFID technology is mainly designed for identification rather than high-security authentication. These low-frequency RFID chips are widely used because of their low cost, stable performance, and compatibility with many access control systems. However, different 125 kHz RFID chips provide different levels of flexibility and security depending on their chip structure and application environment.
The security comparison of EM4200, TK4100, T5577, and ATA5577 is shown below:
| Chip | Security Level | Reason |
| TK4100 | Low | Fixed ID transmission with limited security features |
| EM4200 | Low | Read-only identification technology without advanced authentication |
| T5577 | Basic to Medium | Programmable memory provides flexibility, but security depends on system design |
| ATA5577 | Basic to Medium | More configurable than read-only chips but still designed mainly for identification |
Why 125 kHz RFID Has Security Limitations
Although 125 kHz RFID cards are reliable for many identification applications, they have some limitations when used for security-sensitive systems.
No Advanced Encryption
Most traditional 125 kHz RFID chips, including EM4200 and TK4100, do not support advanced encryption or cryptographic authentication. The chip mainly transmits its stored identification information to the reader.
Fixed ID Transmission
Read-only chips such as EM4200 and TK4100 use a fixed ID number that remains unchanged after manufacturing. This makes them suitable for simple identification but less suitable for applications requiring strong authentication.
Limited Authentication Functions
Compared with newer RFID technologies, traditional 125 kHz RFID chips have fewer security features, such as encrypted communication, mutual authentication, and dynamic data protection.
Can 125 kHz RFID Cards Be Cloned?
Some 125 kHz RFID cards based on older identification protocols may have a higher risk of duplication compared with encrypted RFID technologies. Therefore, they are commonly used for applications where convenience, cost efficiency, and compatibility are more important than advanced security.
For example:
Basic access control systems
Employee identification cards
Membership cards
Low-security identification applications
For applications requiring stronger protection, businesses can consider higher-security RFID technologies such as HF RFID, NFC, or encrypted smart cards like MIFARE® DESFire®EV3.
Cost Comparison: EM4200 vs T5577 vs TK4100 vs ATA5577
Cost is another important factor when selecting a 125 kHz RFID chip, especially for large-volume RFID card projects. However, the lowest-cost option is not always the best choice. The right chip should balance cost, functionality, compatibility, and long-term project requirements.
The general cost comparison of EM4200, T5577, TK4100, and ATA5577 is shown below:
| Chip | Cost Level | Reason |
| TK4100 | Lowest | Simple structure and suitable for mass production |
| EM4200 | Low-Medium | Higher stability and reliable performance |
| T5577 | Medium | Programmable function and flexible configuration |
| ATA5577 | Medium | Enhanced compatibility and writable capability |
If You Need the Lowest Cost: Choose TK4100
For projects where cost efficiency is the primary consideration, TK4100 is one of the most economical 125 kHz RFID chip options available.
Because TK4100 has a simple read-only structure and is compatible with many EM4100-based RFID systems, it is widely used for high-volume RFID card production.
TK4100 RFID cards are suitable for:
Large quantity access cards
Basic ID systems
Employee identification projects
Simple membership applications
For organizations requiring thousands or millions of basic identification cards, TK4100 provides a practical balance between functionality and cost.
If You Need More Flexibility: Choose T5577 or ATA5577
When a project requires programmable RFID cards, different reader environments, or future configuration changes, T5577 and ATA5577 are more suitable choices.
Unlike read-only chips, these writable 125 kHz RFID chips allow data to be rewritten and settings to be adjusted based on application requirements.
T5577 and ATA5577 RFID cards are suitable for:
Different reader environments
Reprogrammable RFID cards
Custom access control solutions
Flexible RFID deployments
Although T5577 and ATA5577 generally have a higher cost than basic read-only chips, their additional flexibility can reduce replacement costs and simplify system management for projects with changing requirements.
Application Comparison: Which Chip Fits Your Project?
The best 125 kHz RFID chip depends largely on the application requirements, existing RFID reader system, and whether programmable functionality is needed. While EM4200 and TK4100 are widely used for simple identification, T5577 and ATA5577 provide more flexibility for projects that require configurable RFID cards.
The following recommendations can help you select the right chip for common 125 kHz RFID applications.

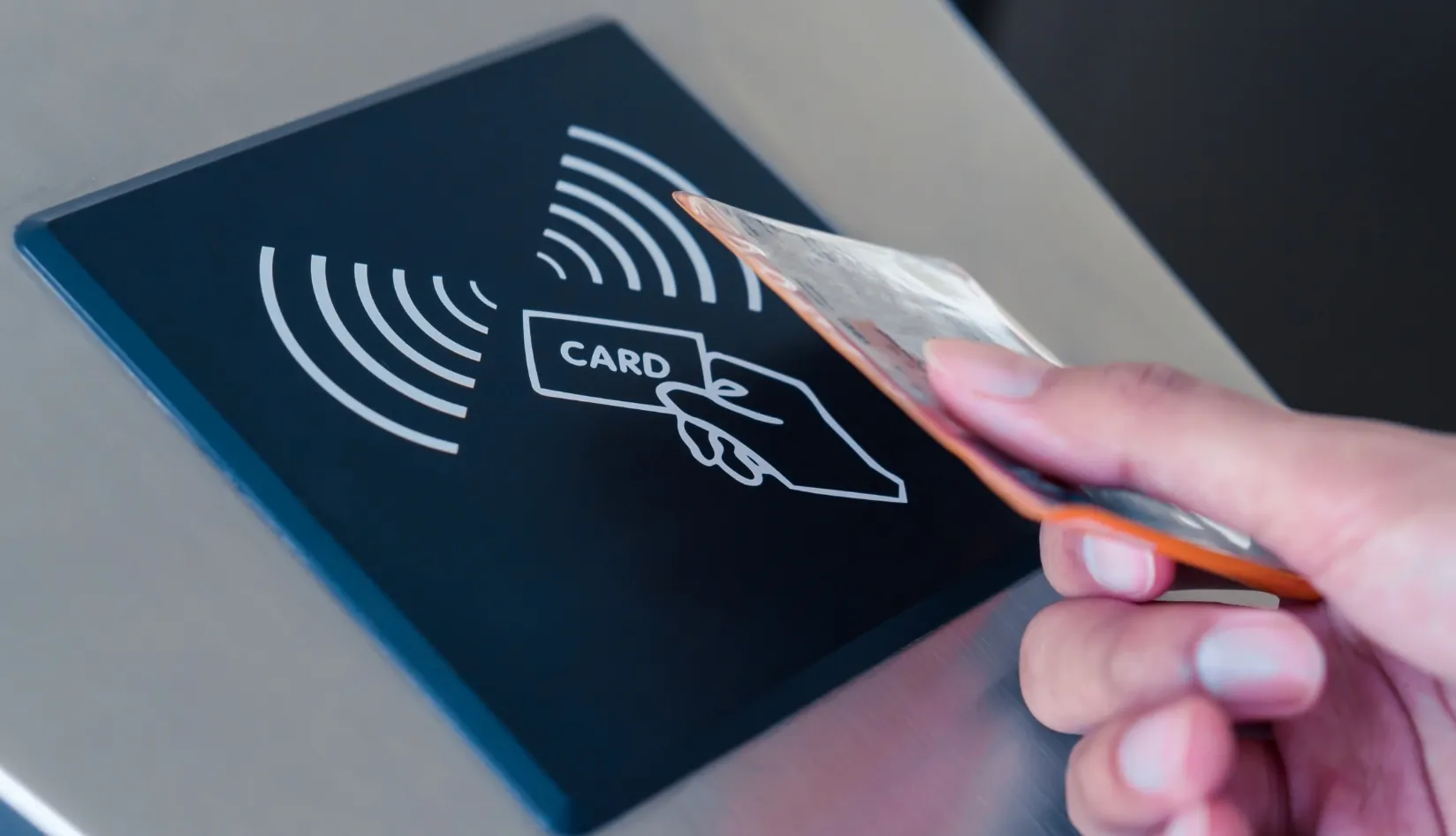

Access Control Cards
Access control is one of the most common applications for 125 kHz RFID technology. The ideal chip choice depends on whether the system requires basic identification or more flexible configuration.
Basic Access Control Systems
For standard access control systems that only require fixed ID identification, EM4200 and TK4100 RFID cards are commonly selected.
Recommended chips:
EM4200 – Suitable for stable and reliable access control applications
TK4100 – A cost-effective option for large-scale access card projects
These chips work well with many existing 125 kHz access control readers and are suitable for buildings, offices, and basic security systems.
Flexible Access Control Systems
For access control projects that require programmable cards or compatibility with different system configurations, T5577 and ATA5577 provide greater flexibility.
Recommended chips:
T5577 – Suitable for programmable access control cards
ATA5577 – Suitable for flexible RFID solutions requiring T5577-compatible functionality
Hotel Key Cards
Many traditional hotel locking systems still use 125 kHz RFID technology because of its stable performance and compatibility with existing infrastructure.
For standard 125 kHz hotel key card systems:
Recommended chips: EM4200 TK4100
These read-only chips provide a simple and reliable solution for guest room access.
For hotels that need compatibility with older or different RFID locking systems, T5577 can be considered because of its programmable capability.
Recommended chip: T5577
This allows greater flexibility when matching specific reader requirements.
Employee ID Cards
Employee identification systems usually require reliable card recognition, long service life, and cost-effective deployment.
Recommended chips: EM4200 TK4100
These chips are suitable for:
Employee access cards
Attendance systems
Basic identity verification
For companies managing large numbers of employees, TK4100 can be a practical choice when cost efficiency is a priority, while EM4200 provides stable performance for long-term use.
Industrial RFID Identification
Industrial applications often require more flexibility because RFID cards may be used across different systems, equipment, or environments.
Recommended chips: T5577 ATA5577
Writable 125 kHz RFID chips are better suited for industrial identification projects that require programmable data, system adjustments, or customized deployments.
Custom 125 kHz RFID Cards from RFIDCard.com
Selecting the right RFID chip is only one part of a successful RFID project. Businesses also need a reliable RFID card supplier that can provide compatible products, consistent quality, and customized solutions based on their application requirements.
RFIDCard.com manufactures custom 125 kHz RFID cards with popular low-frequency RFID chips, including EM4200, TK4100, T5577, and ATA5577. Our RFID card solutions are designed for a wide range of applications, including access control, employee identification, hospitality, membership systems, and industrial identification.
With professional RFID card manufacturing capabilities, we support:
Multiple 125 kHz chip options based on project requirements
Custom card printing and design
RFID card encoding and programming services
Different card formats, including PVC cards, key fobs, and wristbands
Bulk production for commercial and industrial applications
Whether you need cost-effective TK4100 RFID cards for large-volume projects, stable EM4200 RFID cards for standard identification systems, or programmable T5577 and ATA5577 RFID cards for flexible deployments, RFIDCard.com can help you select and manufacture the right solution.
FAQs
Is EM4200 better than TK4100?
EM4200 and TK4100 are both read-only 125 kHz RFID chips with similar basic functionality. EM4200 is generally preferred when stable performance and reliability are the priority, while TK4100 is often selected for cost-sensitive, large-volume projects.
Can T5577 replace EM4200 or TK4100?
T5577 can provide similar identification functions but offers additional programmability. However, replacement depends on the existing RFID reader system and required protocol compatibility.
Should I choose 125 kHz RFID or HF/NFC RFID?
125 kHz RFID is suitable for basic identification applications that require low cost and compatibility. HF/NFC RFID is a better choice for applications requiring encryption, stronger authentication, mobile interaction, or higher security.
