Can a magnet actually deactivate an RFID chip?
It’s a question that comes up more often than you might think—especially as RFID technology becomes more widely used in everyday applications.
You may have heard conflicting answers online, from “yes, it can destroy it instantly” to “no, it has no effect at all.” So which one is true?
In this article, we break down the science behind RFID technology and magnetic fields to uncover what really happens when the two meet—and whether you actually need to worry about it. Let’s get straight to the point.
How RFID Chips Work
To understand whether magnets affect RFID chips, it is important to first understand how RFID technology operates.
An RFID system typically consists of three main components:
- RFID tag: Contains an RFID chip and antenna to store and transmit data
- RFID reader: Sends radio frequency signals and receives information from tags
- Backend system: Processes and manages collected data
The RFID chip is the core component of the tag. It stores information and communicates with RFID readers through radio frequency signals.
Unlike magnetic stripe cards, RFID chips do not store data using magnetic materials. Instead, most RFID chips use non-volatile memory, such as EEPROM (Electrically Erasable Programmable Read-Only Memory), to store information. This type of memory retains data even when power is removed and is not affected by ordinary magnetic fields.
RFID communication relies on electromagnetic waves at specific frequencies, including:
- LF RFID: Around 125 kHz
- HF RFID/NFC: 13.56 MHz
- UHF RFID: 860–960 MHz
The key point is that RFID chips do not use magnetic materials to store data like magnetic stripe cards. RFID communication uses radio frequency technology, while some systems such as HF/NFC rely on inductive coupling through an alternating magnetic field.
Do Magnets Disable RFID Chips?
In general, ordinary magnets will not disable RFID chips.
RFID chips are designed to operate in a variety of environments and are not based on magnetic storage technology. A household magnet does not have enough magnetic strength to damage the chip, erase stored information, or prevent communication between the RFID tag and reader.
Examples of common magnets that normally do not affect RFID chips include:
- Refrigerator magnets
- Magnetic phone holders
- Small household magnets
- Magnetic card holders

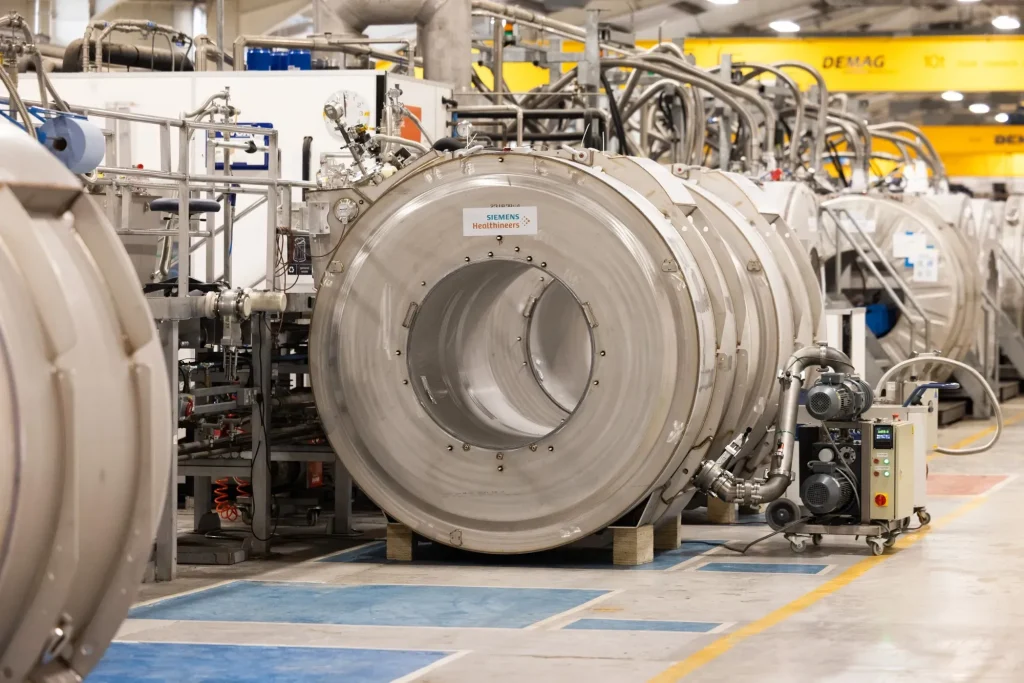

However, extremely strong electromagnetic fields may create interference under specific conditions. For example, industrial electromagnetic equipment or environments with intense electromagnetic radiation may affect RFID performance.
What Are the Effects of Strong Magnets on RFID Chips?
Although everyday magnets do not damage RFID chips, extremely strong magnetic or electromagnetic environments may affect RFID system performance.
Several factors determine whether interference may occur:
Magnetic Field Strength
The stronger the magnetic field, the greater the possibility of interference.
Normal household magnets produce relatively weak magnetic fields, while industrial electromagnets or specialized equipment can generate much stronger fields.
Exposure Time
Brief exposure to ordinary magnetic fields is unlikely to affect RFID chips. Long-term exposure to extreme electromagnetic environments may require additional evaluation.
RFID System Design
Different RFID systems may have different levels of resistance depending on:
- RFID frequency
- Tag design
- Antenna structure
- Operating environment
For most commercial RFID applications, including access control, inventory management, and logistics tracking, magnets are not considered a major risk.
Testing for the Effect of Magnets
In controlled experiments, strong magnets can interfere with the functionality of RFID chips. For example, NdFeB magnets have been reported to interfere with RFID systems in certain circumstances due to their strong magnetic fields. However, these cases are rare and usually involve extreme conditions.
How to Ensure Reliable RFID Performance in Challenging Environments
To ensure that your RFID system can still work properly in strong magnetic conditions, it is recommended to take the following precautions:
1. Avoid Direct Contact with Strong Magnets
The simplest and most effective preventive measure is to keep RFID devices away from strong magnets. Especially in industrial or heavy magnetic field environments, ensuring that RFID cards or tags are kept a certain distance from these magnets can reduce potential interference.
2. Use Shielding Protective Covers
To further enhance security, you can equip your RFID cards with special shielding protective covers. Such protective covers can effectively shield external magnetic fields, ensure that RFID cards are not affected by magnetic fields, and extend their service life.
3. Regular Functional Testing
In environments where strong magnets are present, it is recommended to regularly check your RFID system. By regularly testing the device functions, you can ensure that they are not affected by magnetic fields and prevent data transmission or reading errors.
Comparison of RFID Chips with Other Identification Technologies
Let’s take a look at the differences in the influence of magnetic fields on RFID chips, magnetic stripe cards, and QR code technologies.
1. RFID vs. Magnetic Stripe Cards
Magnetic stripe cards store data through magnetic stripes, so they are easily interfered with by magnetic fields and may even be magnetized, resulting in data loss or reading failure. In contrast, RFID technology relies on radio waves for data transmission and does not use magnetic media. Therefore, RFID chips show stronger resistance to magnetic interference and are more suitable for application scenarios that require high data security and reliability.
2. RFID vs. QR Codes
QR codes scan visual codes through cameras. Unlike RFID, they do not rely on radio waves and are therefore not affected by magnetic fields. However, QR codes are easily rendered ineffective due to physical wear or dirt, especially in harsh environments. In contrast, RFID tags have better durability and support contactless operation, which is suitable for applications that require efficient reading and long-distance identification, such as logistics and access control management.
Conclusion
In summary, while magnets may affect RFID chips, the risk is low under normal conditions. RFID technology is designed to be extremely robust and reliable, making it a trusted choice for a wide variety of applications. By understanding the effects of magnets and taking appropriate precautions, you can ensure the continued effectiveness of RFID systems in your daily life.
FAQs
1. What should I do if I suspect my RFID card is not working due to a magnet?
If you suspect that a magnet has affected your RFID card, try using it in a different environment to rule out other issues. If the problem persists, consult with the issuer of the RFID card for assistance.
2. Can a standard refrigerator magnet deactivate an RFID chip?
No, a standard refrigerator magnet is unlikely to deactivate an RFID chip. RFID chips are designed to be resistant to such weak magnetic fields.
3. How strong does a magnet need to be to affect an RFID chip?
A magnet needs to be exceptionally strong, such as a neodymium magnet, and applied for a prolonged period to potentially affect an RFID chip.
4. Are there any RFID chips specifically designed to be more resistant to magnetic fields?
Yes, some RFID chips, especially those used in high-security applications, are designed with additional shielding to resist magnetic interference.
5. Can RFID tags be affected by other environmental factors besides magnets?
Yes, RFID tags can be affected by extreme temperatures, moisture, and physical damage, but they are generally designed to withstand a range of environmental conditions.
